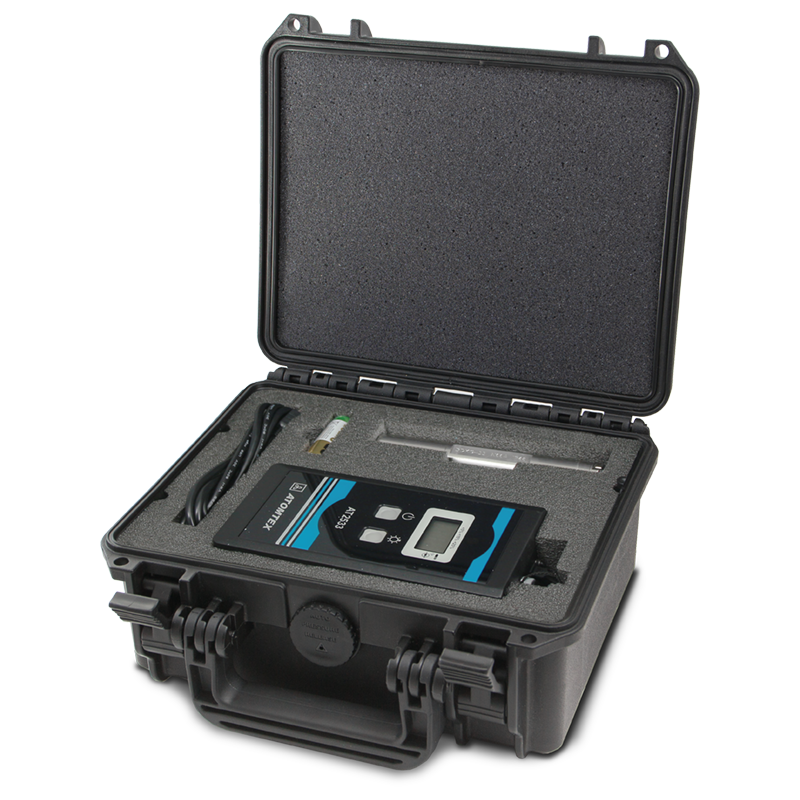

AT2533, AT2533/1 Dosimeters

Measurement of ambient dose equivalent rate and ambient dose equivalent of continuous X-ray and gamma radiation in an extremely wide range and under harsh operating conditions, including emergency response.

Measurement of pulsed radiation dose and average dose rate directly at linear accelerators (LINACs) and other pulsed-radiation facilities.

  • High burn-up life, rugged design and robustness of the detection unit
  • Measurement  in liquids at depths up to 40 m
  • Easy to operate in gloves or hazmat suite
  • Instrument-to-PC data exchange over USB or Bluetooth interface (AT2533/1)
  • Additional detector for operator radiation safety
  • Accessories: cable reel, wall brackets, etc.

Request a quote

Out of stock

AТ2533, AT2533/1 Dosimeters
Detector Silicon semiconductor detector;
Geiger-Muller counter tube
Energy range 50 keV – 10 MeV
Measurement range of ambient dose equivalent rate Ḣ*(10) 1 µSv/h – 1000 Sv/h
Measurement range of ambient dose equivalent Н*(10) 10 µSv – 5000 Sv
Limits of variation of the response due to dose Н*(10) and dose rate Н*(10) ±15%
Measurement range of average pulsed radiation dose rate 30 µSv/s – 0.3 Sv/s
(100 mSv/h – 1000 Sv/h)
(pulse repetition rate is not less than 20 cps, duration not less than 1 μs)
Measurement range of pulsed radiation dose 10 µSv – 5000 Sv
Limits of variation of the response due to dose and average dose rate of pulsed radiation ±20%
Limits of variation of relative response due to gamma radiation energy (50 keV to 3 MeV) and angle of incidence (0° to ±45°) -29% to +67%
Typical sensitivity to 137Cs gamma radiation 0.15 cps/(µSv·h-1) (for Ḣ*(10) ≤0.1 Sv/h)
58 mV/(Sv·h-1) (for Ḣ*(10) >0.1 Sv/h)
Response time for 10-fold dose rate change ≤10 s (for Ḣ*(10) >10 µSv/h)
Burn-up life ≥25000 Sv (BDKG-33 and cable)
Protection class (BDKG-33) IР68
(withstands static hydraulic pressure up to 400 kPa at 40 m immersion depth)
PC interface USB 2.0 (АТ2533)
USB 2.0 / Bluetooth (АТ2533/1)
Overall dimensions, weight Ø30х130 mm, 0.25 kg (BDKG-33)
85х155х35 mm, 0.3 kg (PU-33)

Design and specifications are subject to change without notice.
For details please refer to the datasheet.
