ScintiClear™

CapeSym’s ScintiClear™ is a new high-performance SrI2(Eu)-based scintillator made in the USA. A proprietary crystal growth process improves its inherently excellent properties and limits the negative effects of Eu self-absorption. Guaranteed energy resolution of ScintiClear sensors is ≤ 3.3% at 662 keV. With 4.6 g/cc density, 49 Zeff = 49, and emission peaking at 430nm ScintiClear sensors are an excellent choice for all kind of applications.
We offer Scinticlear as an encapsulated crystals or as a packaged detector cores in sizes up to 51 mm in diameter and 102 mm long. The detector cores include a PMT or SiPM readout and ANSI compatible, rugged packaging.

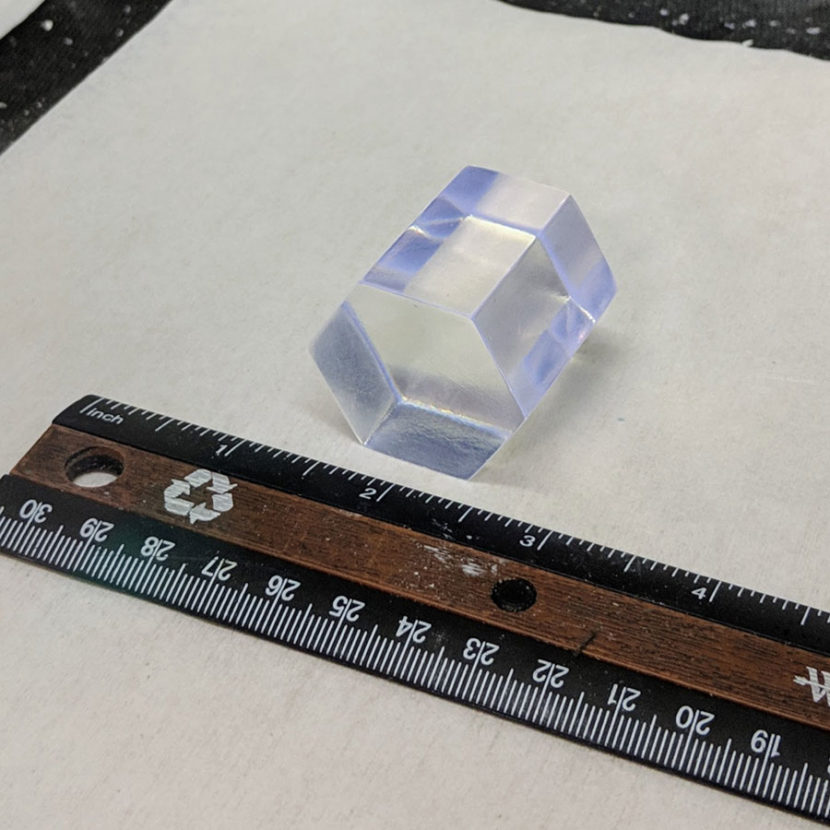

  • Sizes of ScintiClear SrI2(Eu) crystals up to d51x102mm3 (d2”x4”) are commercially available (larger sizes can be manufactured upon request)
  • Extremely high light output 90,000 ph/MeV
  • Energy resolution near 3% at 662 keV
  • High density 4.6 g/cc and high effective atomic number
  • Available as packed crystals, with standard PMTs or with SiPM readouts
  • Custom configurations available upon request

Request a quote

Out of stock

Specification

Item Crystal shape Crystal size, mm Vol.,cc Readout Additional Information
None
SC-25×2 cylinder d25.4×2.0 1.0 Quartz window 0.1mm Be window for low energy X-rays.
SC-25×25 cylinder d25.4×25.4 12.9 Quartz window Encapsulated in 1mm thick Al canister with a quartz window.
SC-38×38 cylinder d38.1×38.1 43.4 Quartz window
SC-51×51 cylinder d50.8×50.8 103 Quartz window
SiPM
SC-6x6c-SiPM cuboid 6.0×6.0x6.0 0.2 6mm SiPM Fast and standard outputs.
SC-6x12c-SiPM cuboid 6.0×6.0x12.0 0.4 6mm SiPM Fast and standard outputs.
SC-13c-SiPM-T cube 12.7×12.7×12.7 2 2×2 6mm SiPMs Fast and standard outputs. Integrated temperature sensor.
SC-14x2c-SiPM-T cuboid 14.0×14.0x2.0 0.4 2×2 6mm SiPMs 0.1mm Be window for low energy X-rays Fast and standard outputs. Integrated temperature sensor.
SC-14x25c-SiPM-T cuboid 14.0×14.0x25.4 5 2×2 6mm SiPMs Fast and standard outputs. Integrated temperature sensor.
PMT
SC-25×25-R3998 cylinder d25.4×25.4 12.9 R3998 Encapsulated with magnetic shielding and moisture barrier.
SC-25×25-R11265 cylinder d25.4×25.4 12.9 R11265U Low profile rugged metal case PMT.
SC-25×51-R11265 cylinder d25.4×50.8 25.8 R11265U
SC-38×25-R6231 cylinder d38.1×25.4 29 R6231 Encapsulated with magnetic shielding and moisture barrier.
SC-38×38-R6231 cylinder d38.1×38.1 43.4 R6231
SC-38×51-R6231 cylinder d38.1×50.8 57.9 R6231
SC-51×25-R6232 cylinder d50.8×25.4 51.5 R6232 Encapsulated with magnetic shielding and moisture barrier.
SC-51×38-R6232 cylinder d50.8×38.1 77.2 R6232
SC-51×51-R6232 cylinder d50.8×50.8 103 R6232

Design and specifications are subject to change without notice.
For details please refer to the datasheet.
