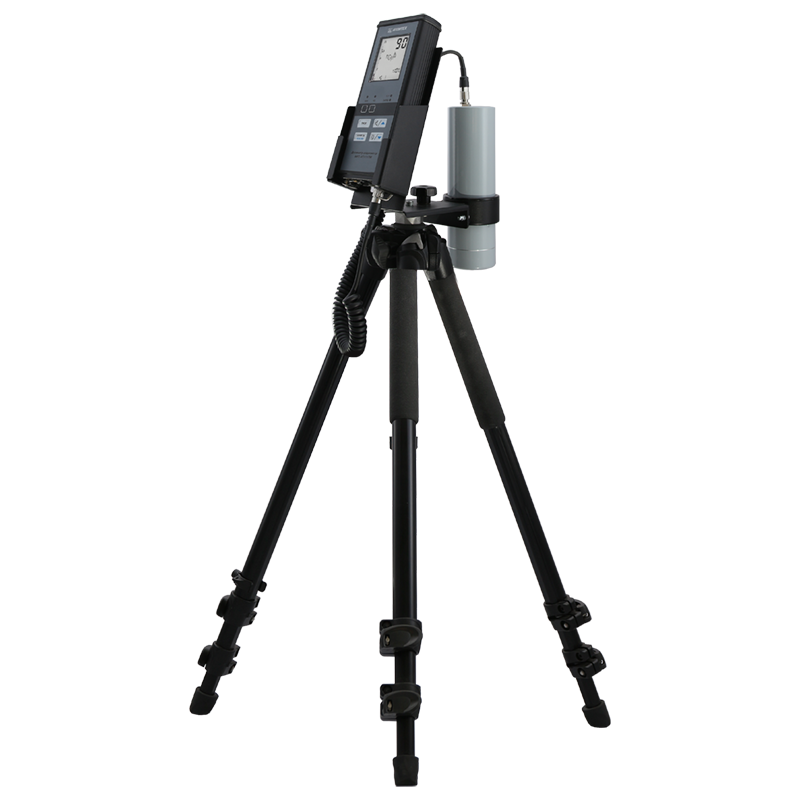

AT1117M Radiation Monitor (Portable Radiation Monitoring Stations)

The following configuration of the radiation monitor can be used:
With BDKG-24: For measurement of gamma and X-ray radiation ambient dose equivalent and ambient dose equivalent rate
With BDKG-30: For measurement of air kerma and air kerma rate

  • High sensitivity
  • Sound, light and visual alarm for exceeded threshold levels
  • Can be operated both as a stationary and portable instrument
  • With PU4 can automatically record and storage over 10,000 measurements with GPS-geotagging
  • With PU4 optional automatic data transfer to a remote server or further radiological data processing on a PC



Request a quote

Out of stock

Specification

AT1117M Radiation Monitor (Portable Radiation Monitoring Stations)
Processing unit PU2 (Version 1) PU4 (Version 2, 3)
Measurement range of ambient dose equivalent rate 1 µSv/h – 100 mSv/h 1 µSv/h – 100 mSv/h
Overall dimensions, weight 210x88x36 mm, 0.6 kg 265x90x40 mm, 0.6 kg
Detection unit* BDKG-24 BDKG-30
Detector Scintillation plastic, Ø50×40 mm Scintillation plastic, Ø50×40 mm
Energy range 25 keV – 10 MeV 50 keV – 10 MeV
Measurement range of ambient dose equivalent rate 30 nSv/h – 1 Sv/h –
Measurement range of air kerma rate – 30 nGy/h – 1 Gy/h
Typical sensitivity to 137Cs gamma radiation 530 cps/(µSv∙h-1) 600 cps/(µGy·h-1)
Overall dimensions, weight Ø60×205 mm, 0.5 kg Ø60×207 mm, 0.6 kg
* BDKG-24 (BDKG-30) detection unit can be replaced by any detection unit from AT1117M radiation monitor set (except BDKN-03, BDKN-05)

Design and specifications are subject to change without notice.
For details please refer to the datasheet.
